Description

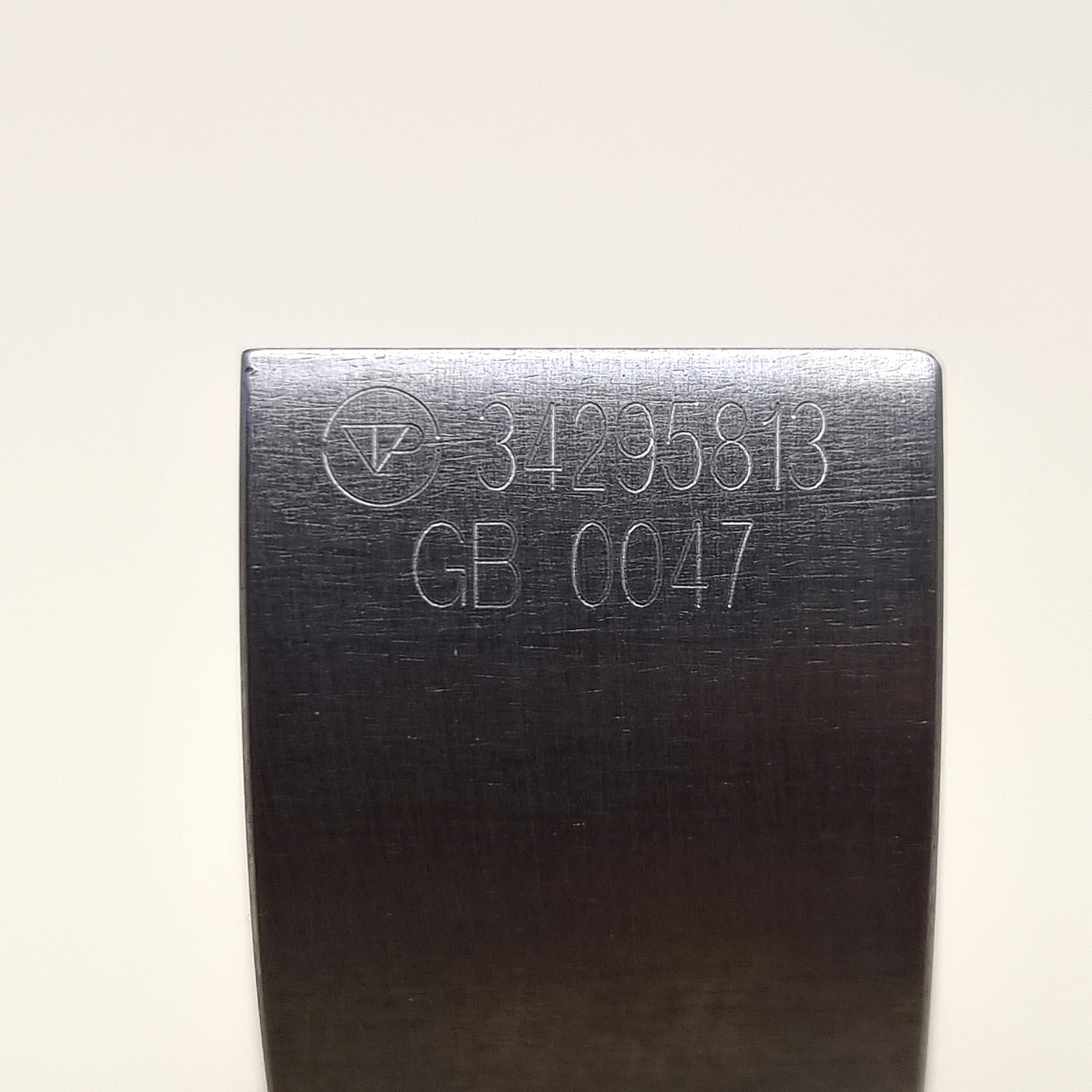

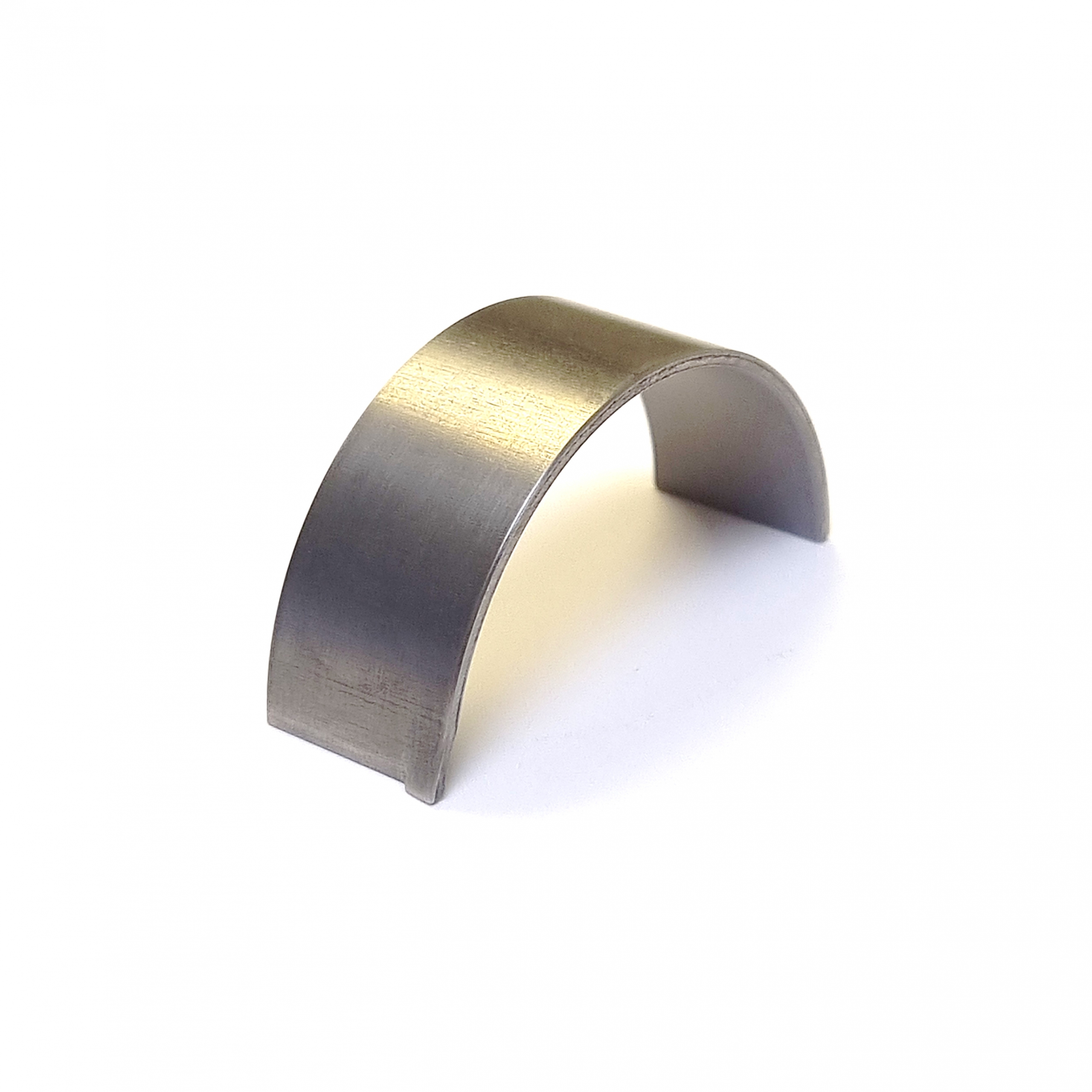

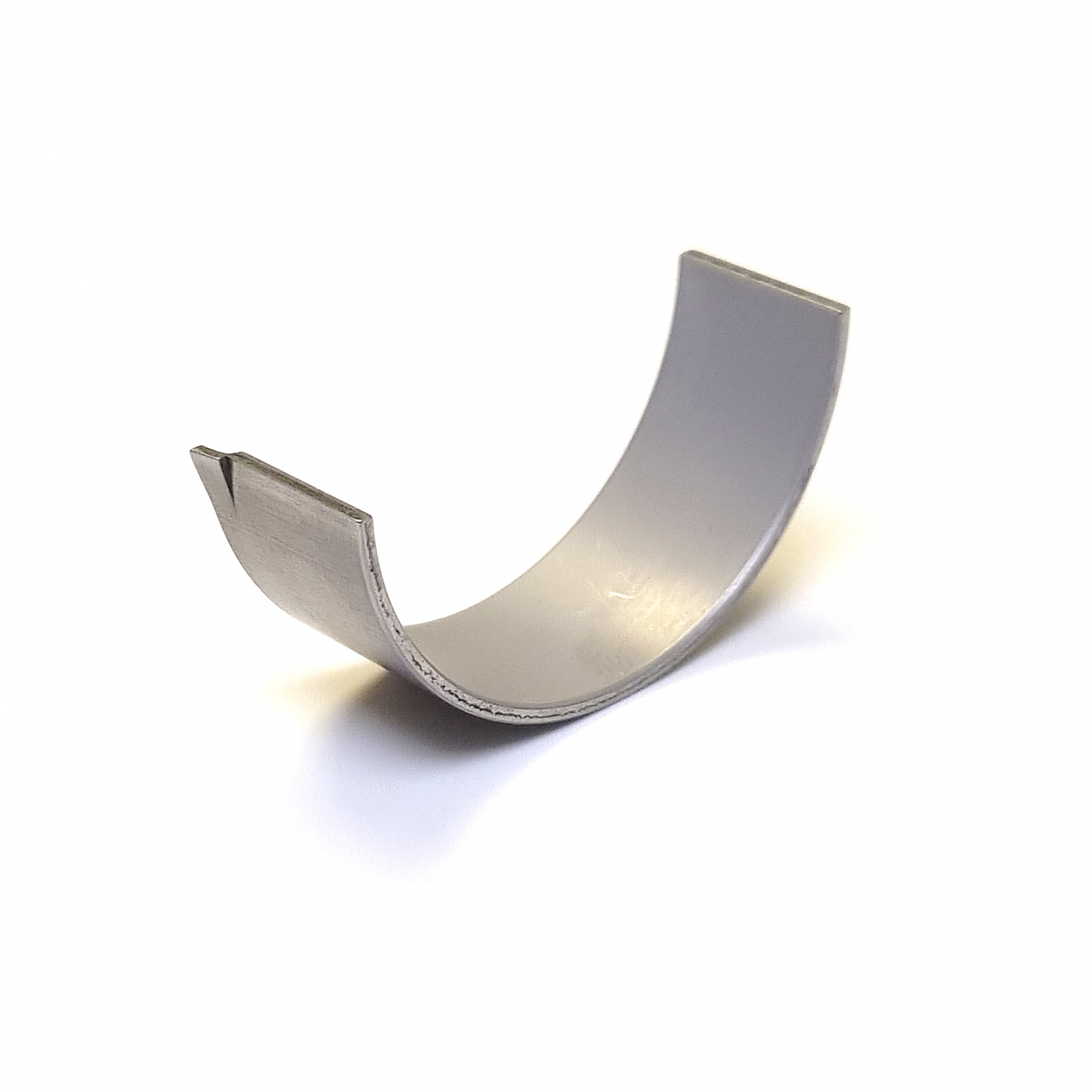

The Cosworth GB0047 con rod bearing is a versatile engine part. Over the years it has been used in a number of Formula 1 engines, including the GB, DFR and HB.
These bearings are manufactured at the original Vandervell bearing plant in Kilmarnock, now under Mahle ownership. Over the years, Cosworth have specified Vandervell bearings for all of its high performance road and race engines, and we are proud to be able to continue to supply them today. After all, we have over 60 years of winning experience that we can rely on. This means that our bearings are the best in the business!
Our Cosworth rod bearings are tri-metallic VP2 bearings, made up from three discrete metallic layers; a steel backing, a strip-cast lead bronze substrate and a lead indium overlay. First of all, the steel backing is made from a high strength steel alloy. This allows the bearing to be interfered into the rod and cap halves without yielding. Next, the lead bronze substrate layer gives the bearing its load carrying capability. This layer has the right balance of elements to cope with wear, cavitation and extreme loads that are seen in a high-performance engine. Finally, the lead-indium overlay protects the bronze layer from damage. This overlay gives the bearing three important characteristics: conformability, compatibility and embeddability.
As a result of this unique construction, our bearings are able to handle the most extreme pressures and loads.
We also stock the original FVA & DFV con rod bearing, part number FA0067, which was later used on the BD series.
Dimensions
- Length = 16.74/17.00 mm
- Housing diameter = 48.000/48.012 mm
- Shaft diameter = 45.000/44.988 mm
